Inflatable Adjustable Anti
Package Size 350.00cm * 500.00cm * 500.00cm Package Gross Weight 300.000kg Description: Dock shelter is widely used in d
Send your inquiryDESCRIPTION
Basic Info.
Model NO. | YO-Dock Seal |
Opening Type | Power Driven |
Special Function | Security |
Color | Black |
Certification | ISO9001, CE |
Position | Industrial |
Surface Finishing | Finished |
Options | Sponge/Inflatable/Mechanical |
Profile Color | Aluminum (Ral9006) |
Fixed | Galvanized Steel Liner |
Application | Warehouse, Cold Storage ,Loading Bay |
Transport Package | Export Wooden Case |
Specification | 3000*2500(Customized) |
Trademark | YUOU |
Origin | China |
HS Code | 85308000 |
Production Capacity | 5000pieces/Year |
Packaging & Delivery
Package Size 350.00cm * 500.00cm * 500.00cm Package Gross Weight 300.000kgProduct Description
Description:
Dock shelter is widely used in dock area.It seals the gap between truck and warehouse.Provide a a clean and airtight loading environment.Three kind of dock shelters are commonly used:
1.Mechanical dock shelter:
Technical data:
Mechanical Dock Shelter | |||
Size | 3400*3400mm or customized | ||
Color | Stanard color is black, or customized | ||
Front Material | Longitudinal tensile strength >550N, transverse tensile strength >900N, maximum tensile strength 250N/mm², metal friction coefficient 0.3, PVC friction coefficient 0.4, thickness 3mm, unit weight 3.6kg/m2 | ||
Adjustable height rang | 1000mm | ||
Side PVC Material | Tensile force 250N, thickness 0.5mm, unit weight 0.7kg/m2 | ||
working temperature | 35ºC to 70ºC | ||
Aluminum frame | The rear profile size is 50*44mm, the front profile size is 45*44mm, the frame size is 50*25*2.5mm, and the front press plate size is 34*4.8mm |
Structure Diagram:
Product Details:
1.Front curtain:
Longitudinal tensile strength >550N, transverse tensile strength >900N, maximum tensile strength 250N/mm², metal friction coefficient 0.3, PVC friction coefficient 0.4, thickness 3mm, unit weight 3.6kg/m2
2. Side curtain:
Tensile force 250N, thickness 0.5mm, unit weight 0.7kg/m2
3. Aluminum frame:
The rear profile size is 50*44mm, the front profile size is 45*44mm, the frame size is 50*25*2.5mm, and the front press plate size is 34*4.8mm
4. Accessories:
You will receive:
Products real shot:
Related Products
-
Hydraulic Electric Ramp Garage Equipment Lifting Table Truck Container Work Platform Adjustable Loading Telescoping Lifter Dock Ramp Leveler
-

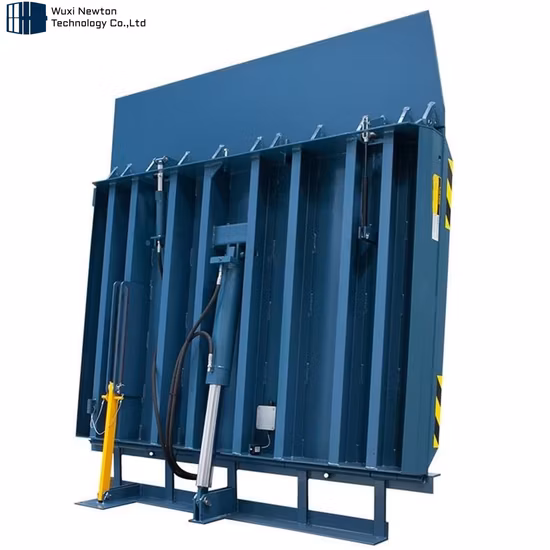

Hydraulic Warehouse Loading Hydraulic Dock Leveler Edge of Dock Leveler Manufacturer
-

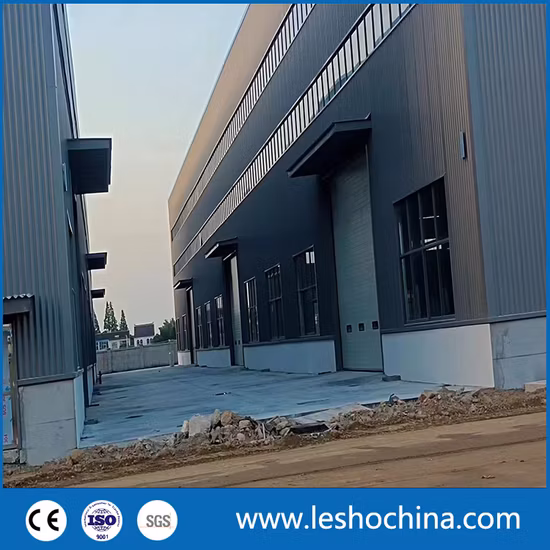

Electrical Commercial Automatic Steel Thermal Insulated High Lifting Roll up Sectional Overhead High Speed Sliding Industrial Doors for Warehouse
-
